Panda
HAND PLATING SYSTEM
treatment of fractures and
reconstructive procedures on small bones
Overview

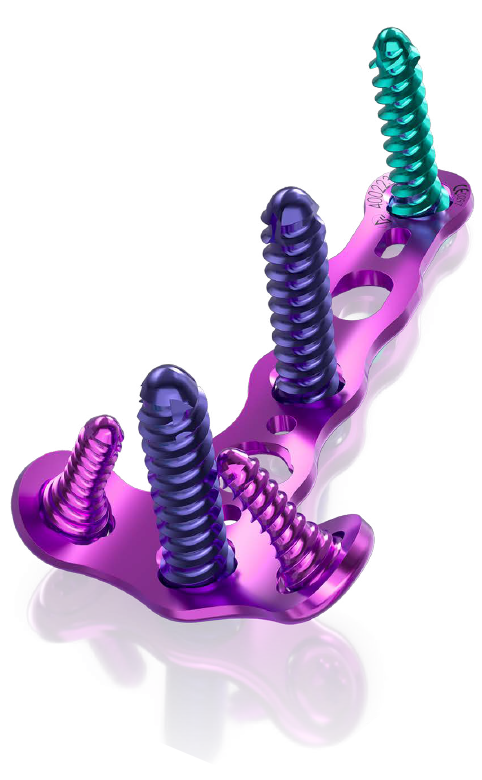

The new Panda hand system includes a wide selection of plates. To accommodate the variety of hand fractures encountered during routine surgeries.
Available 2 profile thicknesses
With color codification for easy identification
0.8 mm
PINK
1.2 mm
Dark violet

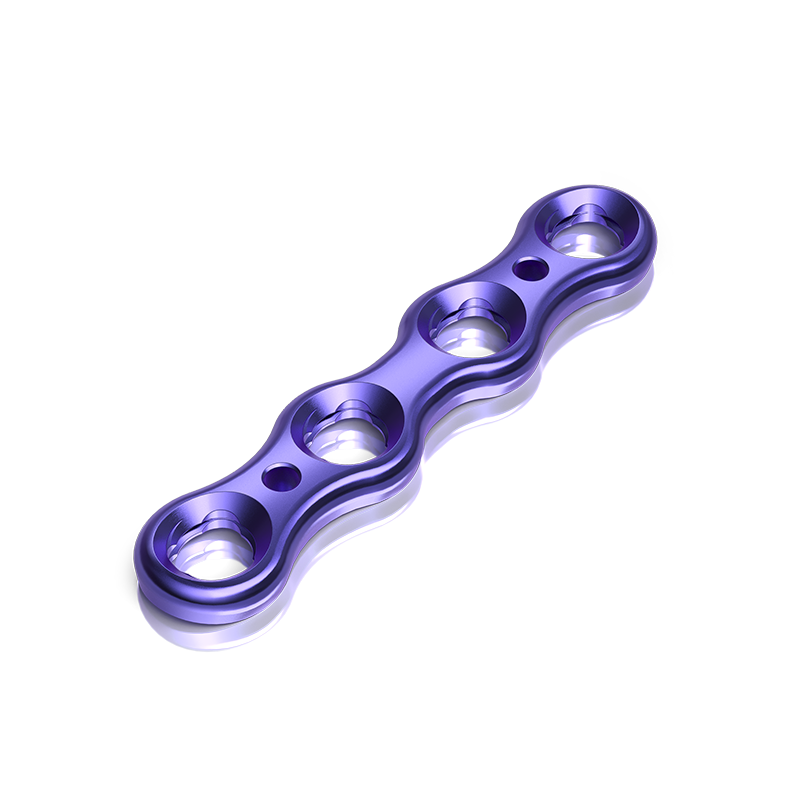

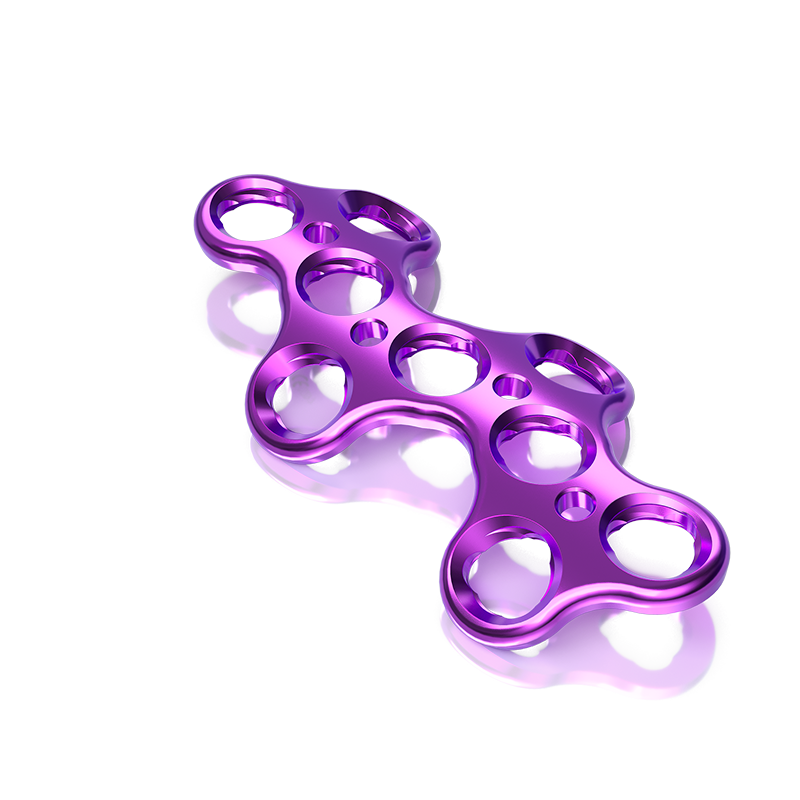

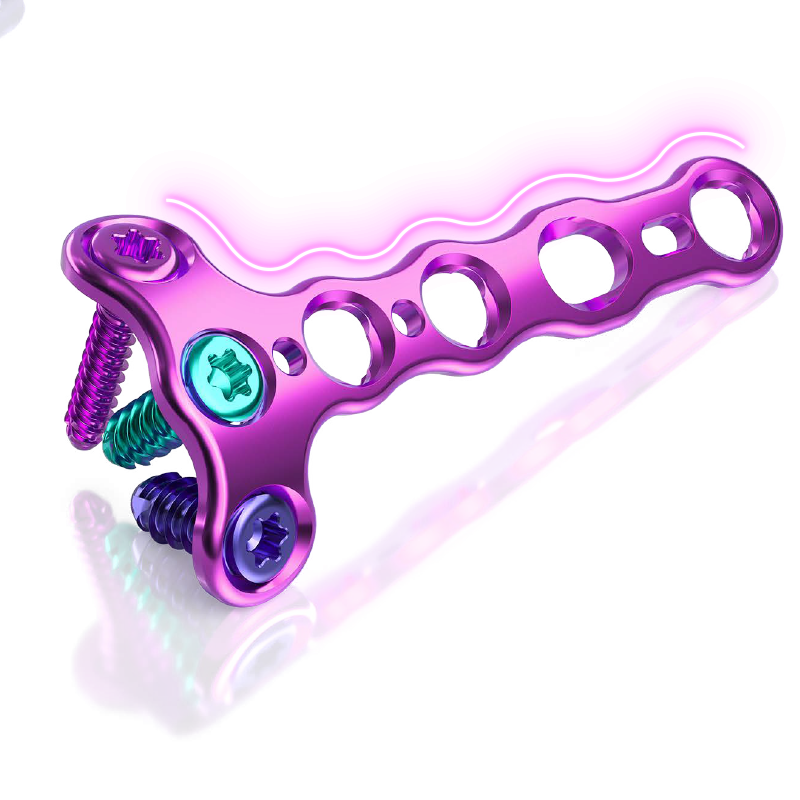

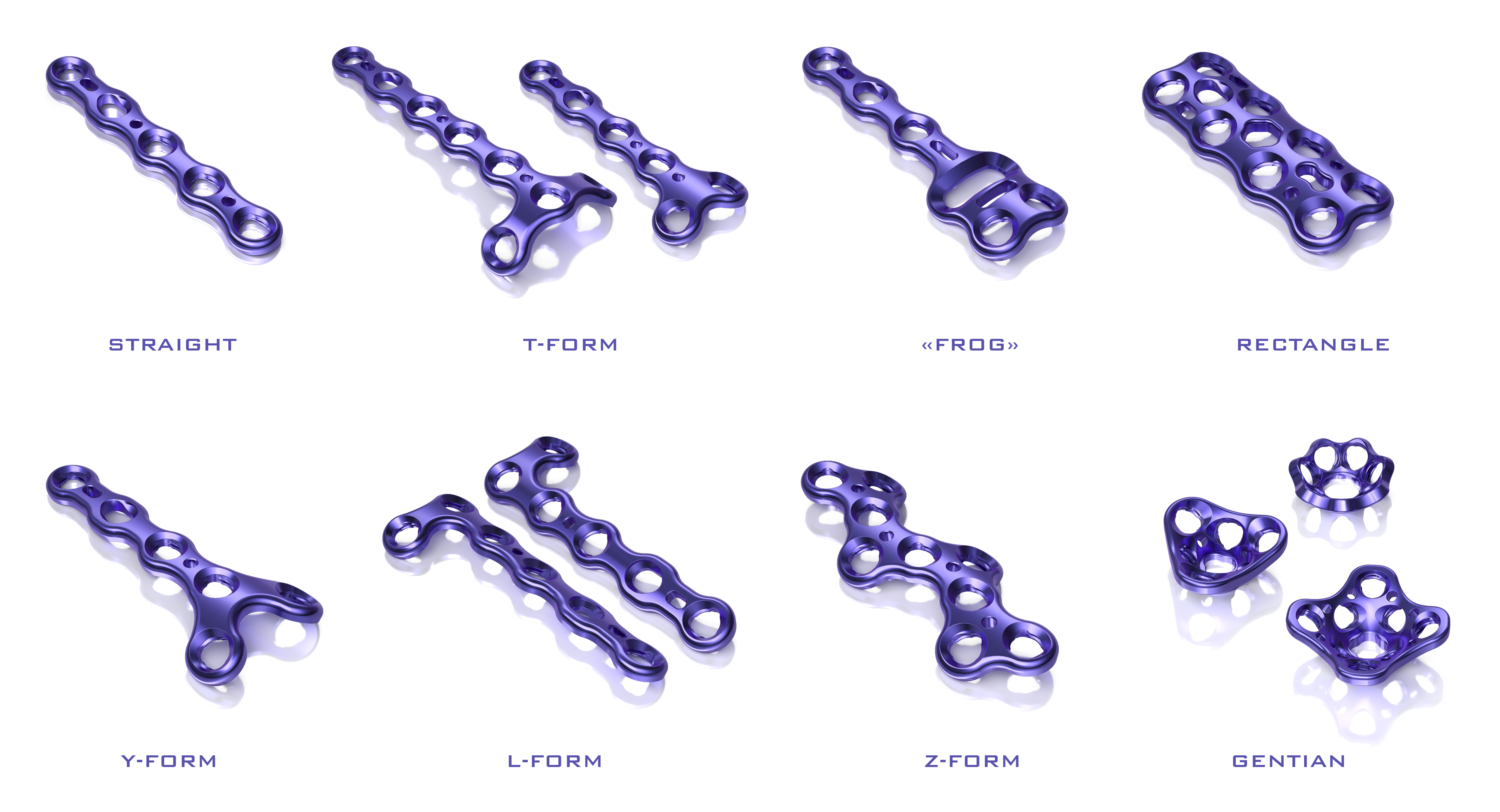

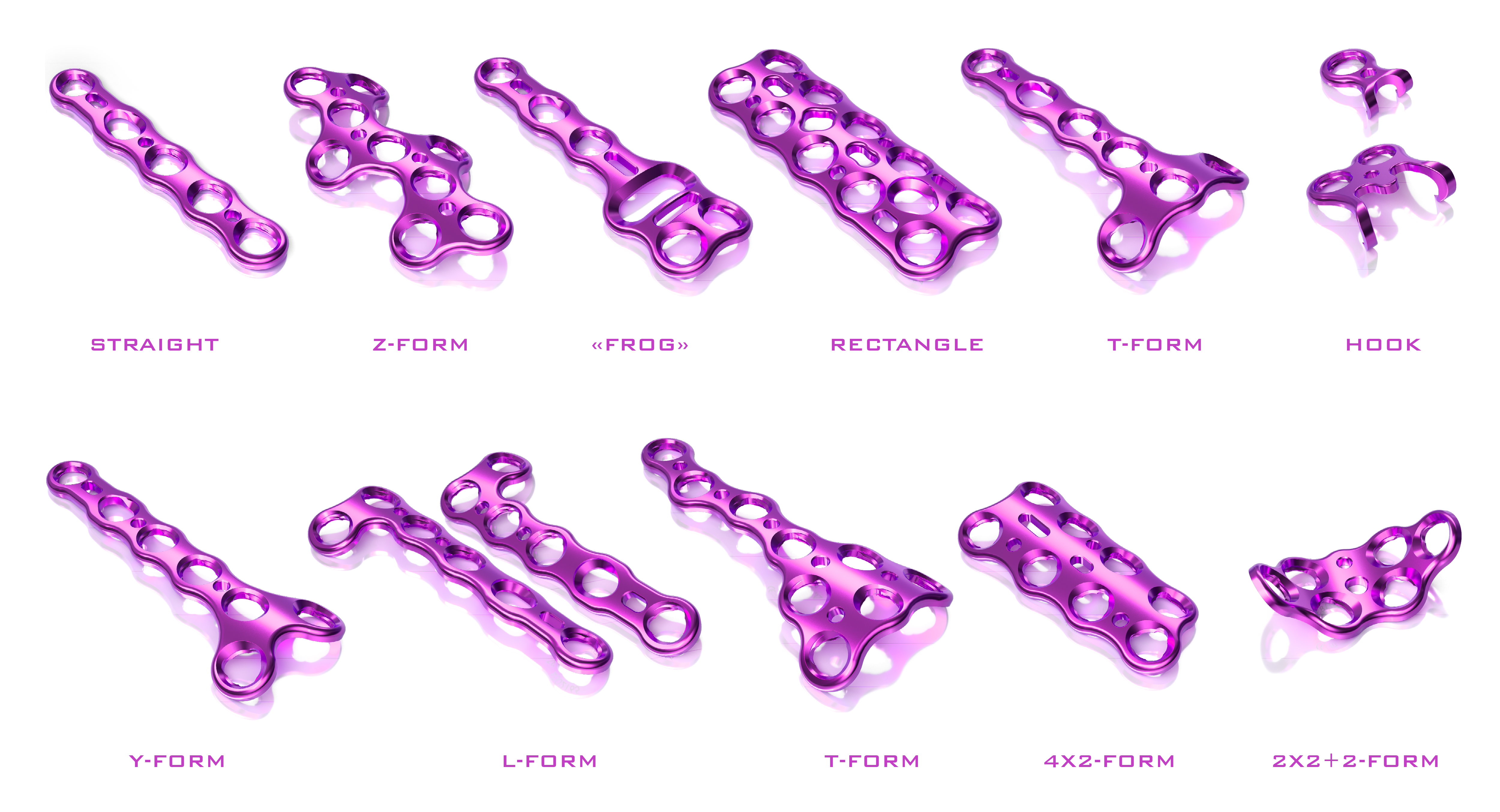

Types of titanium plates
plate features

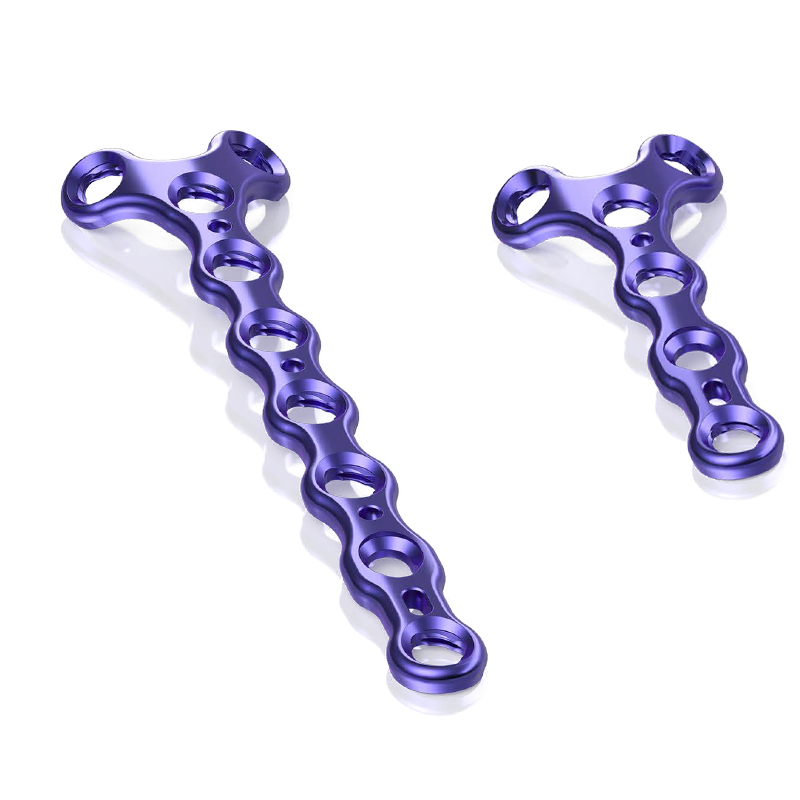

Available in different lengths
Does not require plates to be shortened
Available in
a flexible choice of screw type
Standard screws
and locking screws
fit all plate holes
1.5 mm
2.0 mm
2.3 mm
Rounded edges &
a smooth surface
For soft tissue protection
Atraumatic,
rounded contour
Best possible embedding in soft tissue

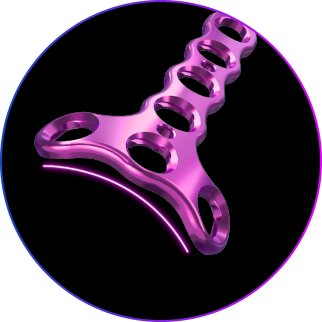

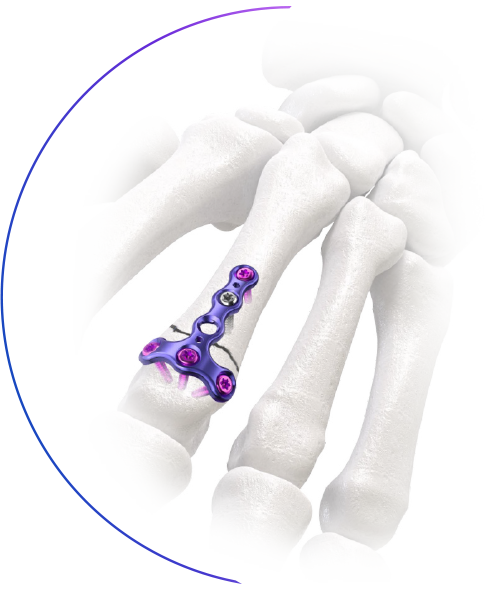

Anatomical
pre-shaped design
• Precise anatomical plate fit requires fewer intraoperative adjustments
• Increased rigidity and strength from a less endable structure
Universal plate hole shapes

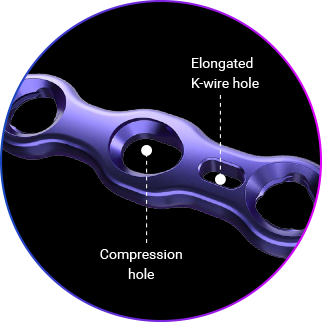

• Plates include an elongated K-wire hole and a compression hole
• Secure closure of the fracture
Oval holes
In some plates to allow longitudinal compression
Multiple options allow an individual and best possible fracture treatment

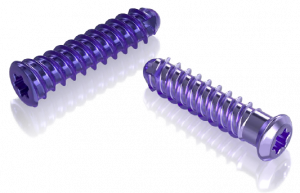

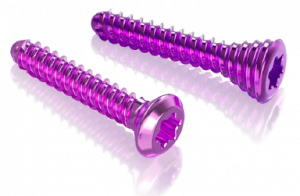

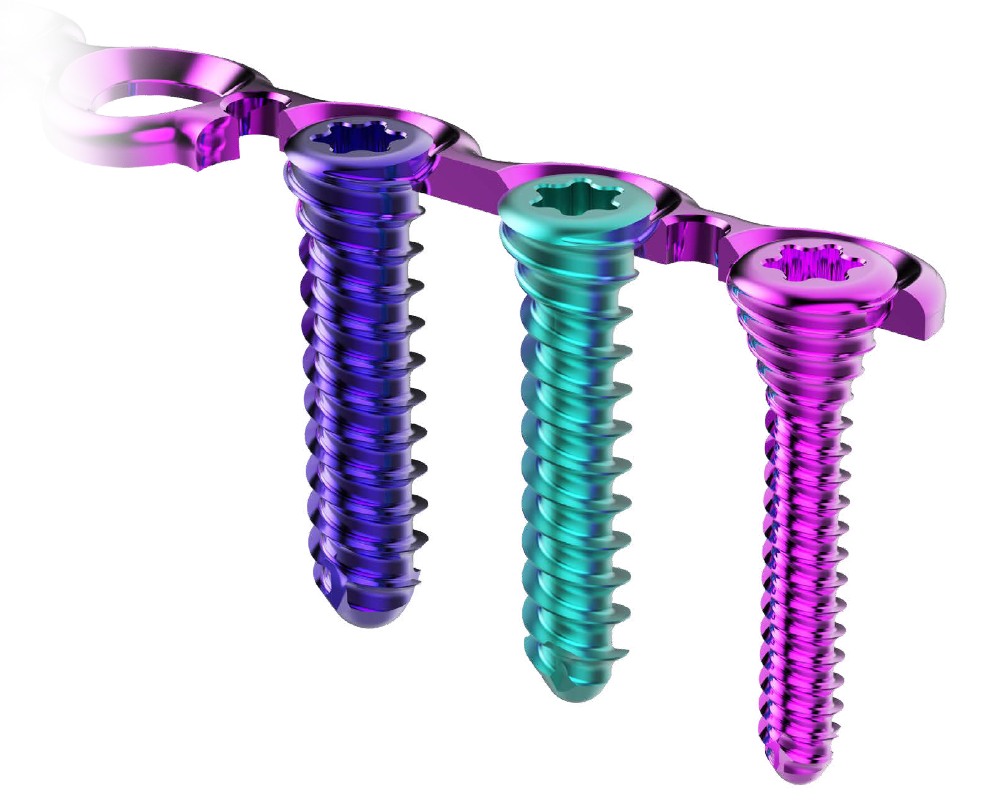

ADVANTAGES OF THE SCREWS
Multiple combinations
All standard and Multidirectional locking screws with different thread diameters due to the same diameter of the head can be used for all holes
Universal holes
Allow using different screw diameters
D - 1.5 mm
D - 2.0 mm
Color-coded identifiers
Standard and multidirectional locking screws
are distinguished through
D - 2.3 mm
Completely countersunk screw heads
Atraumatic screw tip
Offers soft tissue protection when inserting screws bicortically

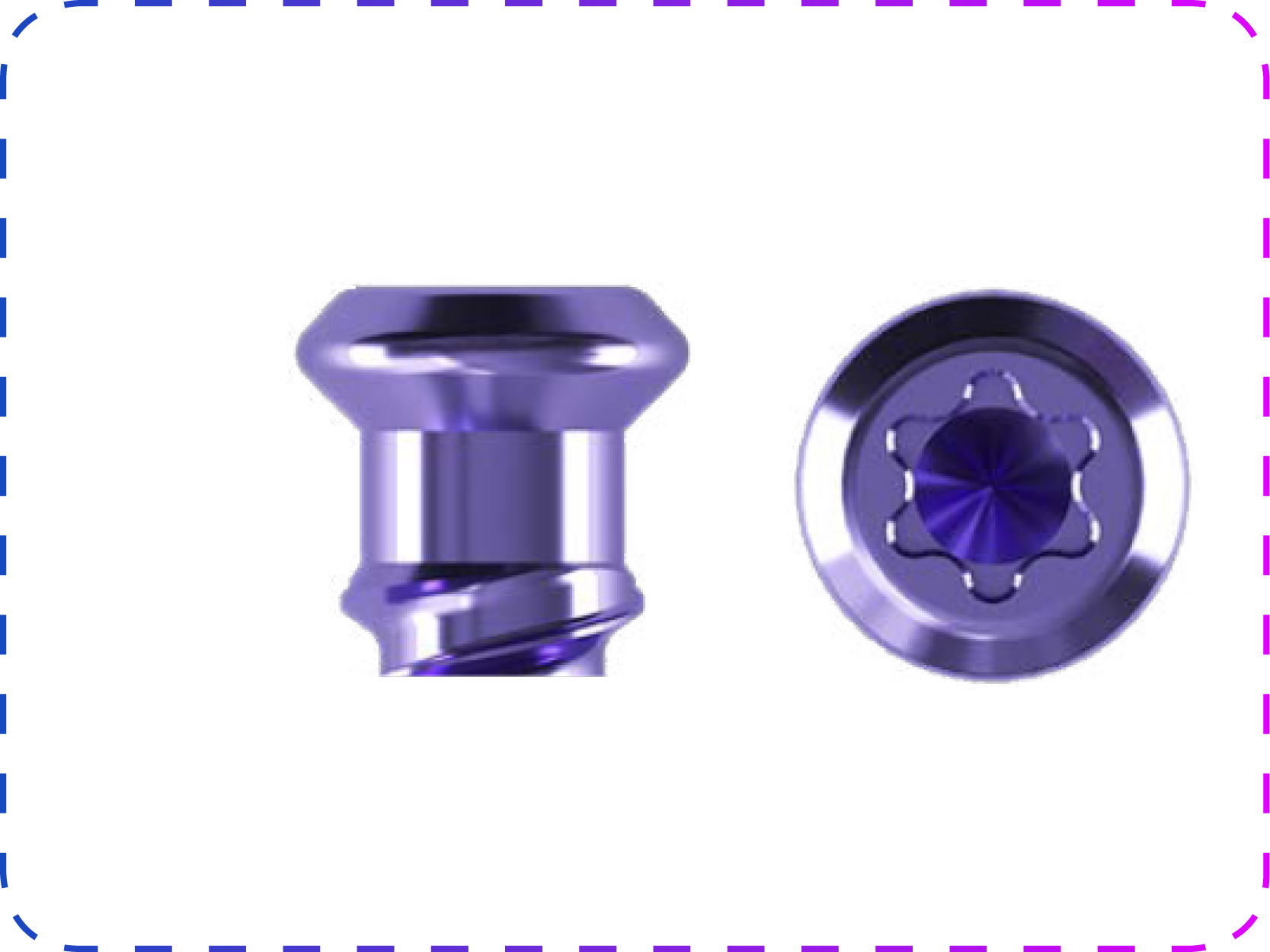

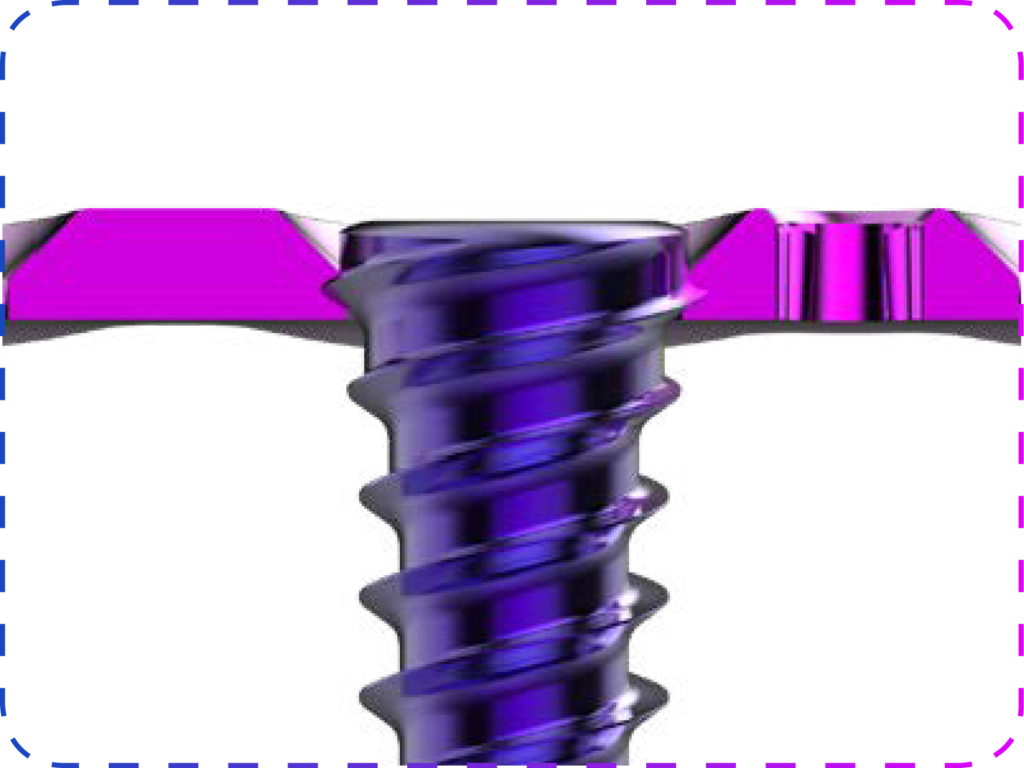

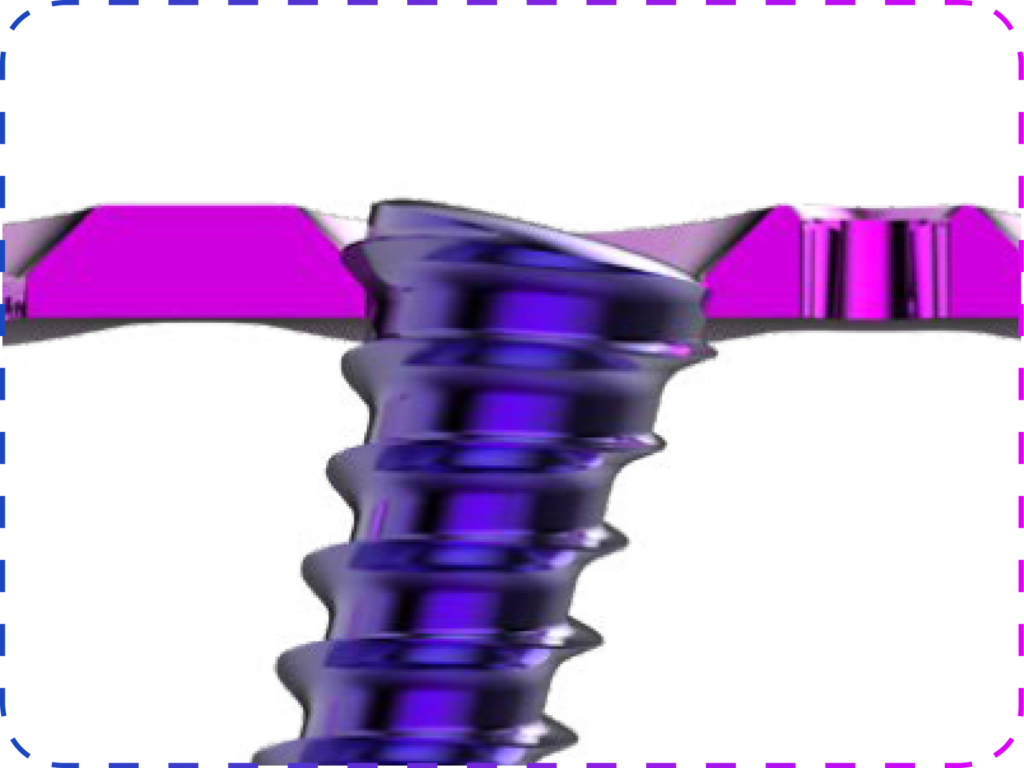

Minimal
screw head protrusion
• Thanks to internal locking contour
• Soft tissue protection due to smooth screw head design
• Screws can be relocked in the same screw hole at individual angles up to three times

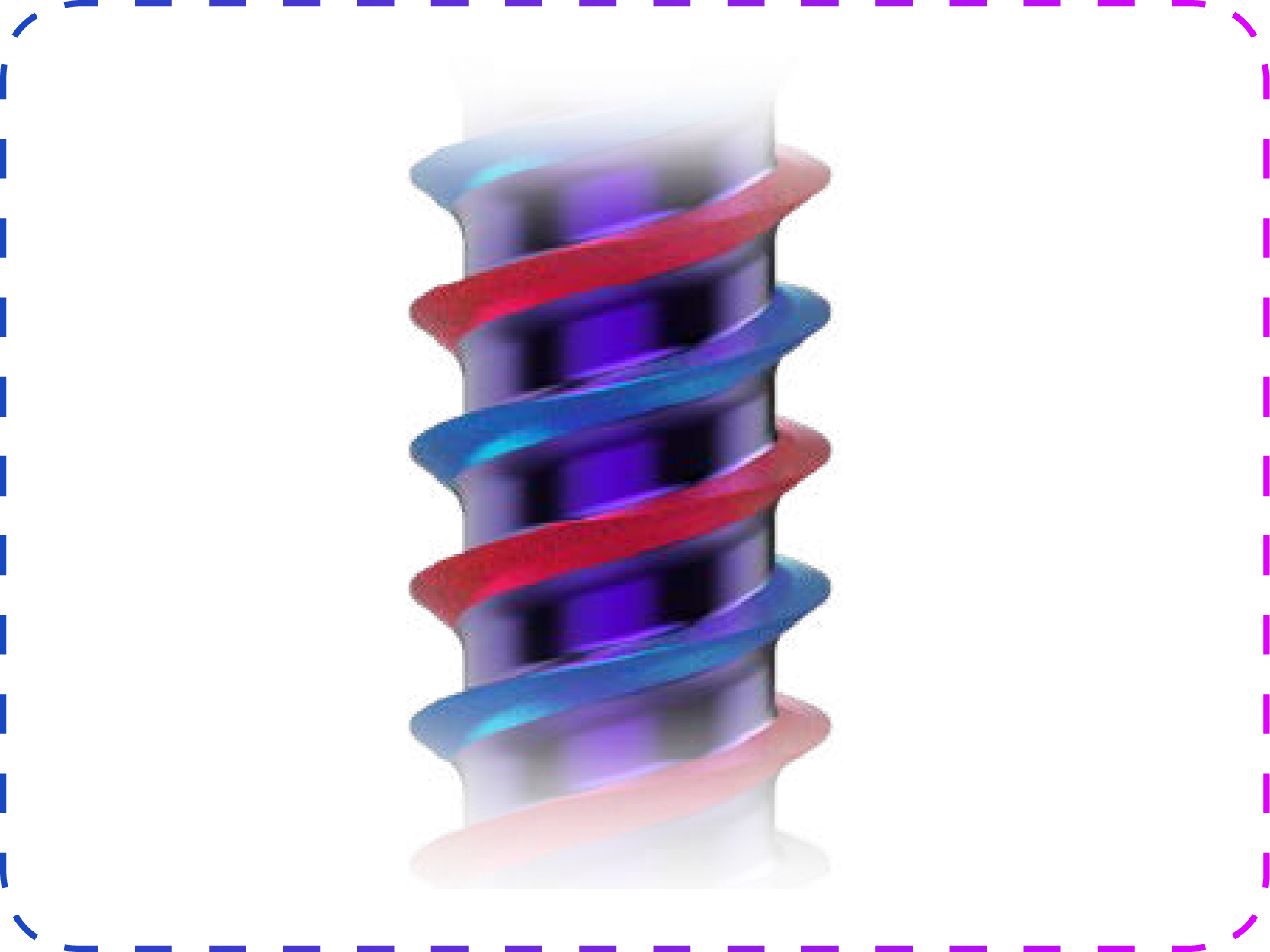

2x faster insertion
With double lead threads
Rounded,
low-profile screw heads
An absence of screw head prominence provides less chance of soft tissue irritation even for maximum locking screw angulation

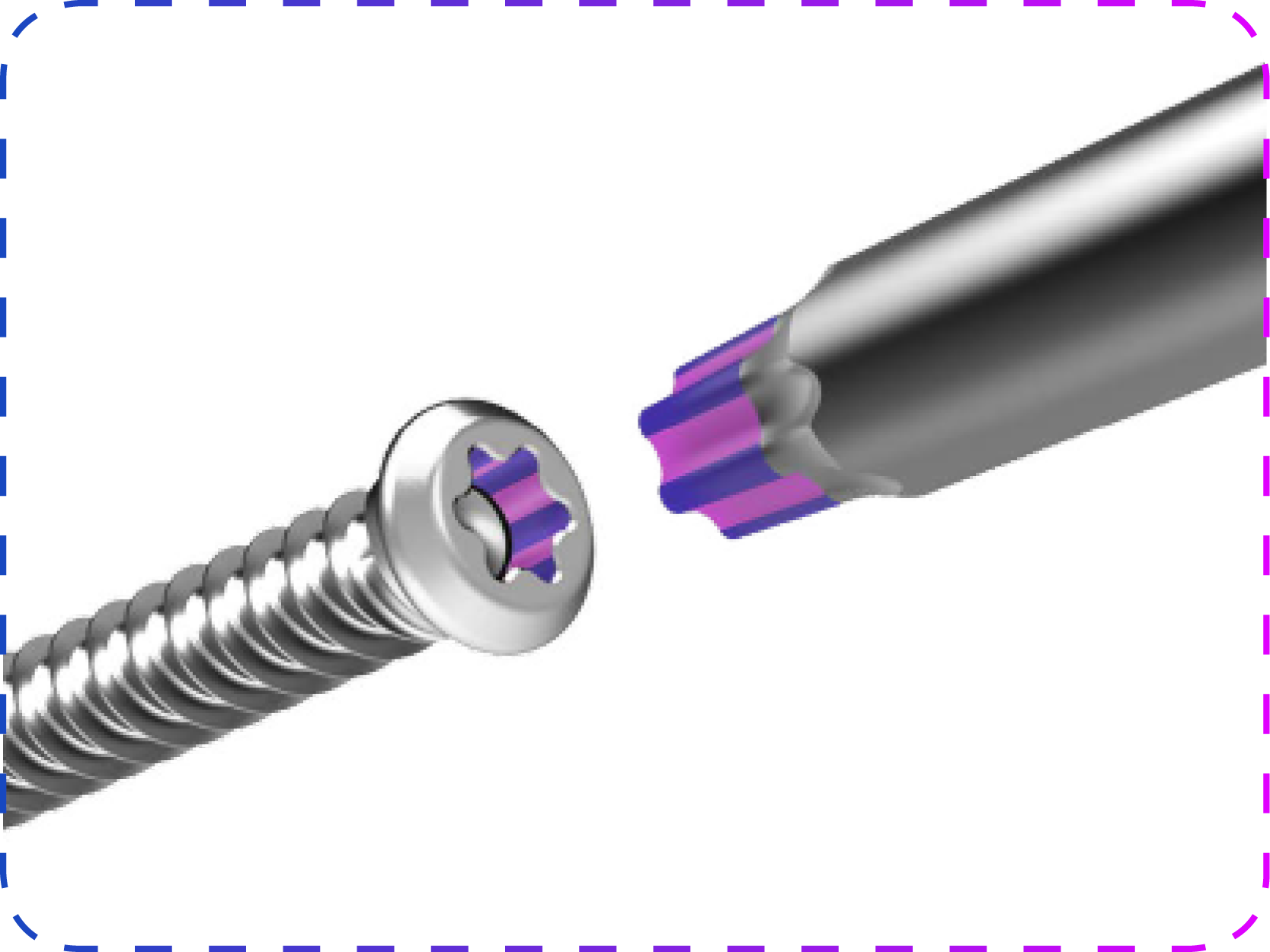

Screw heads fit the same screwdriver
One instrument
for different screws

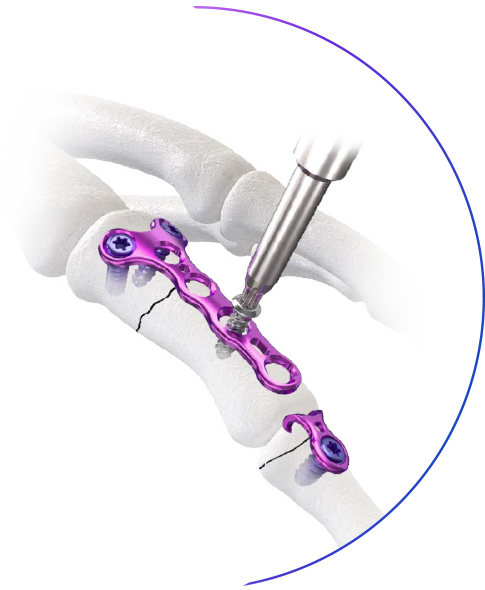

Perfect selfretaining function
• Easy pick-up, insertion, tightening and removal of screws
• Screws can be unlocked then relocated and locked to another position if needed

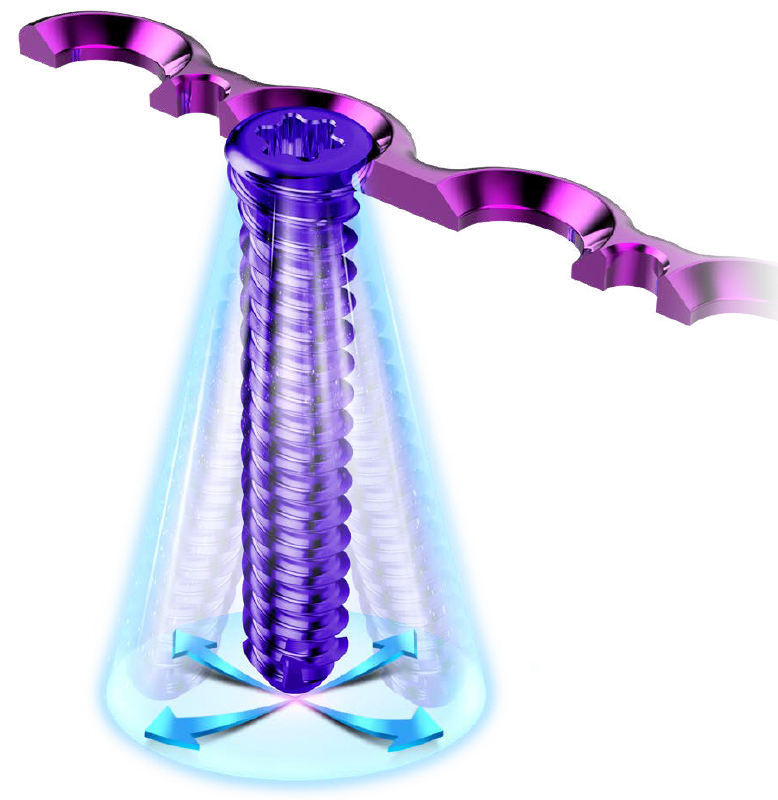

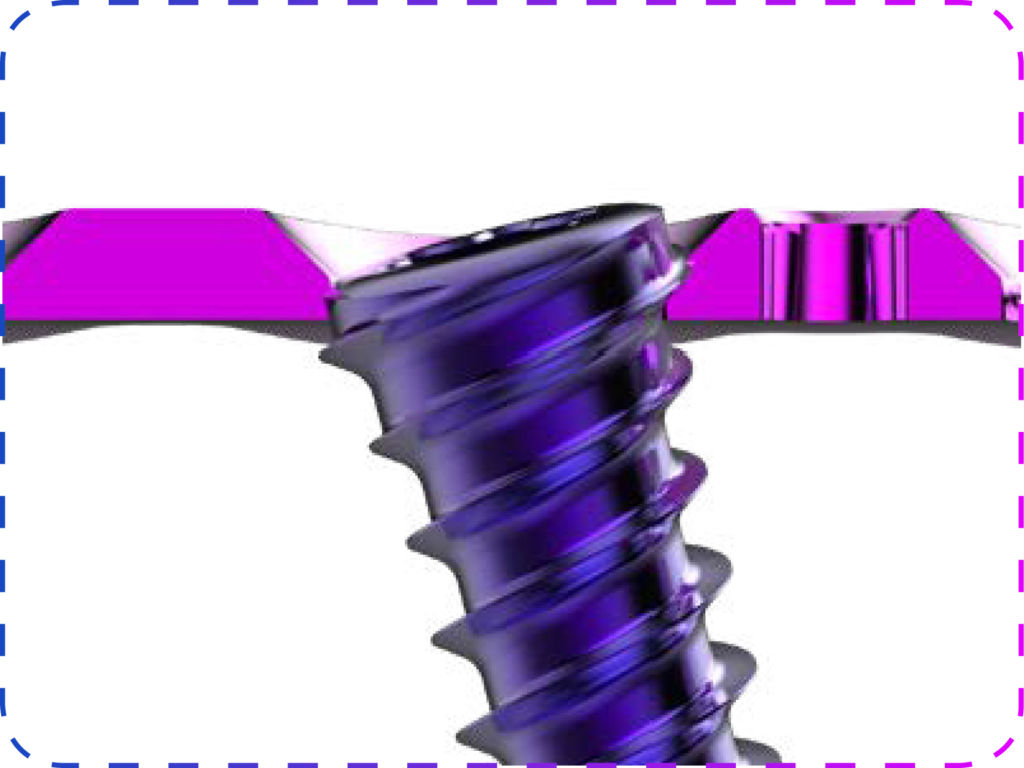

Multidirectional angular stability ±15º
